With the M5000 model, powdered substances with a melting point of up to 400 °C can be analysed quickly, easily and fully automatically. The automatic determination of the melting point ensures an objective measurement result at all times. Due to the high pre-heating rate and built-in fan cooling, the fully automatic measurement is fast and reliable in any temperature range. Even unknown substances can be conveniently analysed thanks to various adjustable heating rates. All important measurement data can be read clearly on the display.
Basic functions
- Fully automatic measurement
- 1 capillary intake
- LCD display with screen in German and English
- Alarm signal when reaching the melting point
- Digital visualization of all important data
- Automatic fast cooling through integrated fan
- Data can be exported to CBM910 printer via RS-232 interface
- Easy to clean membrane keypad
- Includes protective cover and 100 capillaries
- Low sample volume required
Highlights
Technical data
| Specification | Melting point meter M5000 Model |
|---|---|
| Measurement range | 25-400 °C |
| Measurement accuracy |
±0.3 °C (25-200 °C) ±0.5 °C (200-400 °C) |
| Resolution | 0,1 °C |
| Preheating rate |
up 200 °C approx. 4.0 min to 300 °C approx. 9.0 min |
| Heating rate | 1 °C min -1 / 2 °C min -1 / 3 °C min -1 / 4 °C min -1 / 5 °C min -1 |
| Display | LCD |
| No of capillary intakes | 1 |
| Capillary Ø | 1.4 mm |
| Interfaces | RS-232 |
| IP code | IP20 |
| Power supply | 90-264 V |
| Dimensions (W x H x D) | 220 mm x 150 mm x 340 mm |
| Weight | 4.1 kg |
Documents
| Title | Download |
|---|---|
| Brochure Melting Point Meters | DownloadPreview |
| WHO-Melting Point Reference Substances | DownloadPreview |
You need to login to be able to upload file!
Calibration standards
-
Melting point standard vanillin USP
385,00 €Calibration standard for melting point determination. Vanillin from 81°C-83°C. USP-certified
-
Melting point standard phenacetin USP
385,00 €Calibration standard for melting point determination. Phenacetin 133°C-136°C. USP-certified
-
Melting point standard Sulfanilamide USP
385,00 €Calibration standard for melting point determination. Sulfanilamide 164°C-166°C. USP-certified
-
Melting point standard caffeine USP
385,00 €Calibration standard for melting point determination. Caffeine from 234°C to 236.5°C. USP-certified
-
Melting point standard vanillin PSS
185,00 €Calibration standard for melting point determination. Vanillin 81°C-83°C. Pharmaceutical Secondary Standard
-
Melting point standard phenacetin PSS
250,00 €Calibration standard for melting point determination. Phenacetin 133°C-136°C. Pharmaceutical Secondary Standard
-
Melting point standard Sulfanilamide PSS
185,00 €Calibration standard for melting point determination. Sulfanilamide 164°C-166°C. Pharmaceutical Secondary Standard
-
Melting point standard caffeine PSS
185,00 €Calibration standard for melting point determination. Caffeine 234°C-236.5°C. Pharmaceutical Secondary Standard
Consumables
-

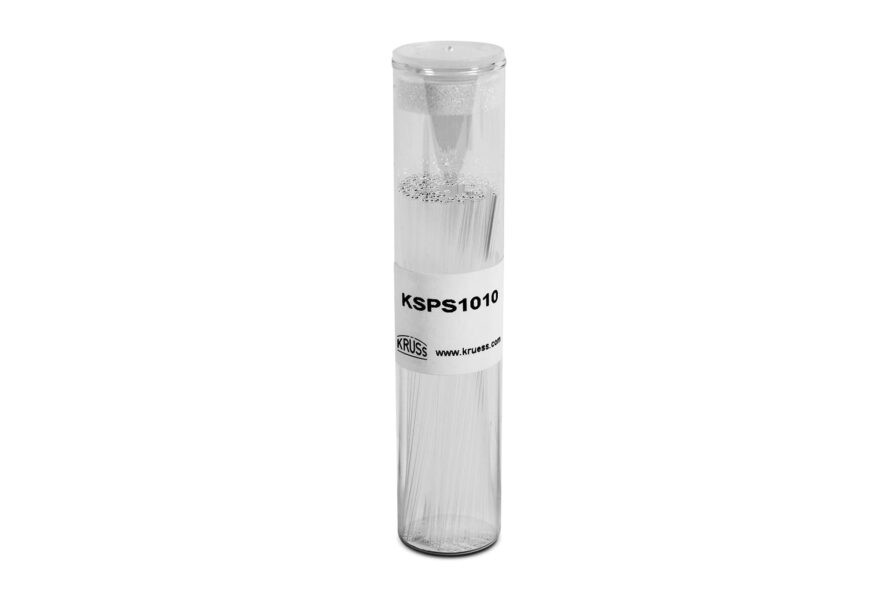

Capillary tubes
14,00 €Capillary tubes for melting point determination. Length: 80mm, diameter: 1.4mm.
1 tin with 100 pieces
Accessories
-
Capillary guide
12,00 €For easy insertion of the capillary (fully automatic device M5000)
-
Interface cable for printer (CBM910)
23,00 €Interface cable for connecting CBM910 to KRÜSS devices, such as: DR6000 series, P8000 series, FP8000 series
-
Ink ribbon for printer (CBM910)
12,00 €Ink ribbon as replacement for CBM910 printer, for printing measurement results
-
Printer CBM910
304,00 €Matrix printer suitable for many KRÜSS laboratory devices, e.g: DR6000 series, M5000, M3000, P8000 series, FP8000 series
-
Paper roll for printer (CBM910)
3,00 €Replacement printer paper for the CBM910 printer
