Stereo microscope MSZ5000-T-S

967,00 €

Microscope with swivelling stand, tube, infinitely variable zoom;
Objectives: 0.7X – 4.5X

SKU: MSZ5000-T-S Category: Tags: , , ,

excl. VAT zzgl. Versandkosten

Product description

The zoom stereo microscope with swivelling stand is ideal for the professional examination of electronics, precision mechanics, plastic products and biological samples. Swivelling stand microscopes offer maximum working distance and flexibility. Suitable for viewing and analyzing larger specimens. A very good resolution is offered despite the large working distance. Also ideal for precise testing of circuit boards or for soldering and repairs. The large zoom range, the large working distance and the wide depth of field make it very comfortable to work in many areas. It offers a continuous zoom 0.7X to 4.5X magnification.

The MSZ5000-T-S and MSZ5000-T-S-RL microscopes have a photo and video tube and can be used for microscope photography or video recording. The robust metal housing facilitates reliable work even in harsh environments. Various magnification eyepieces and attachment lenses for adjusting magnification and working distance are available as accessories.

Basic functions

  • Microscopes: MSZ5000-T-S and MSZ5000-T-S-RL can be connected to a photo or video camera
  • Increased working distance
  • Microscopes: MSZ5000-S-RL and MSZ5000-T-S-RL already include an LED ring light
  • Infinitely variable zoom 7X to 45X total magnification
  • Attachment lenses optionally available for adjusting the maximum magnification or
    Further magnification of the working distance
  • Wide range of accessories

Highlights

Technical data

TABLE

Stereo-Mikroskope – Die MSZ5000-Modelle (mit Schwenkarm) im Vergleich
Spezifikation MSZ5000-S Modell: MSZ5000-S-RL MSZ5000-T-S Modell: MSZ5000-T-S-RL
Mikroskopkopf 45° Schrägeinblick
Symmetrische Augenabstandsjustierung 51–75 mm
Beidseitiger Dioptrienausgleich 		45° Schrägeinblick
Symmetrische Augenabstandsjustierung 51–75 mm
Beidseitiger Dioptrienausgleich
Tubus zum Anschluss von Foto- und Videokamera
Okulare 10X Weitfeldokulare, Sehfeldzahl: 20
Sehfelddurchmesser 32,8 mm – 5,1 mm
Objektfelddurchmesser 28,6 mm – 4,44 mm
Objektive 0,7–4,5x Zoom-Objektiv, stufenlos
Vergrößerung 7X – 45X, optional mit 20X Okularen auf 14X – 90X erweiterbar
Arbeitsabstand Ca. 90 mm

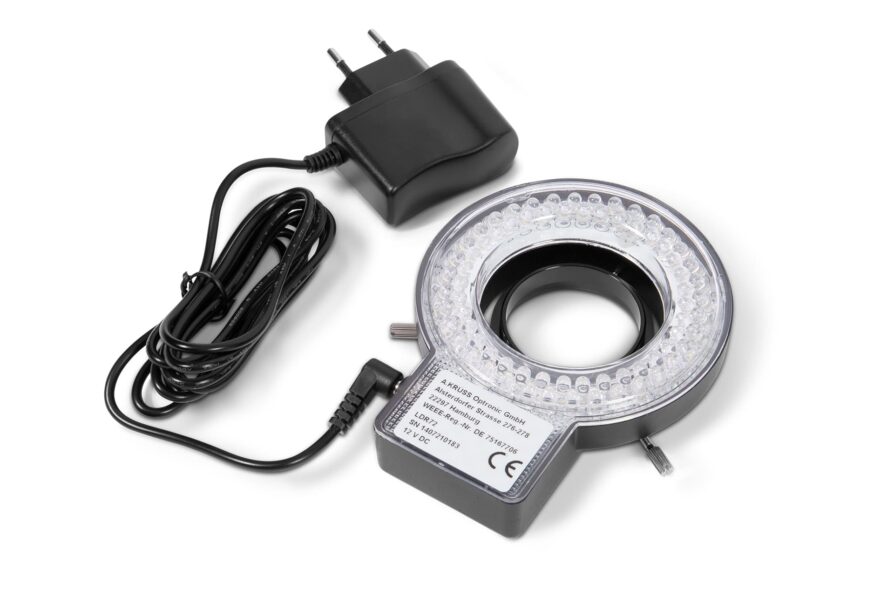

Beleuchtung _ _ _ _ _ Mit Auflicht (LED-Ringbeleuchtung) _ _ _ _ _ Mit Auflicht (LED-Ringbeleuchtung)
Stativ Schwenkstativ/ Schwenkarm aus Metall
Geräte Basisdaten
Schutzart IP20
Maße (B x H x T) Mikroskop: 300 mm x 450 mm x 310 mm
Gewicht 15,5 kg 15,8 kg 16 kg 16,3 kg
Temperaturdaten
Umgebungstemperatur 0-40° C
Umgebungsluftfeuchtigkeit 10-90% (nicht kondensierend)
Elektrische Kenndaten
Betriebsspannung _ _ _ _ _ _ _ Externes Netzteil (LDR72): 100-240 VAC
LDR72: 12 VDC 		_ _ _ _ _ _ _ Externes Netzteil (LDR72): 100-240 VAC
LDR72: 12 VDC
Bemessungsfrequenz _ _ _ _ _ _ _ 50/60 Hz _ _ _ _ _ _ _ 50/60 Hz

Documents

Titel Herunterladen
Broschüre Krüss Mikroskope HerunterladenVorschau
Mikroskope Anwendungsbereiche und Modelle HerunterladenVorschau

Upload files in this category Drag und Drop Ihrer Datei hierher Upload a folder Upload files

Accessories

Modell

MSZ5000-S, MSZ5000-S-RL, MSZ5000-T-S, MSZ5000-T-S-RL
