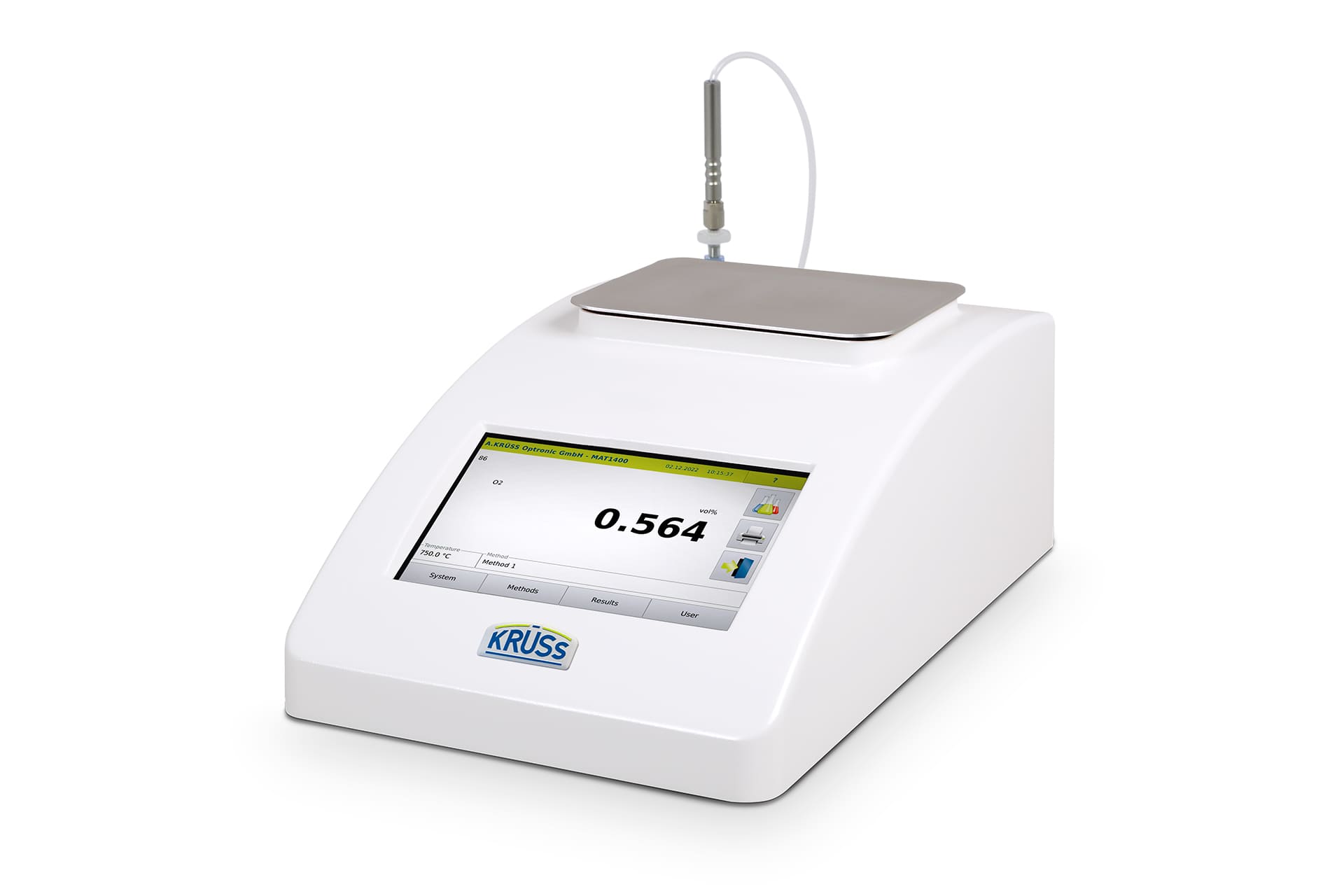

The MAT1400’s zirconium dioxide sensor (ZrO2) measures the oxygen concentration in the entire measurement range from 0-100 vol%. Especially at very low concentrations, it achieves an outstanding accuracy of ±0.02 Vol.-%. This makes the MAT1400 equally suitable for testing oxygen-free and oxygen-rich modified atmospheres. It can also be used in cold rooms from an ambient temperature of 10°C (non-condensing).
Basic functions
- Easy and intuitive to operate via touchscreen – even for untrained personnel
- Drift-free zirconium dioxide sensor (ZrO2) measures in the measurement range range of 0-100Vol.-%
- Short measurement period
- Only a small sample volume required
- Various interfaces for the convenient transfer of measured values (USB, Ethernet, RS-232)
- Any number of measurement methods for monitoring the measurement process by method, batch, product and/or production line, including limit value monitoring
- GMP-compliant analysis with a high standard of user management, self-analysis of the device and alarm limit and method settings
- Also suitable for continuous gas mixture monitoring
Highlights
Technical data
| Specification | gas analyser MAT1400 model | ||||
|---|---|---|---|---|---|
| Average measuremnet periode 1) | 5 seconds | ||||
| Minimal headspace volume 2) | 5ml | ||||
| Heating time | 10 minutes | ||||
| Adjustment | Automatic (menu-driven) | ||||
| Scales | Oxygen | ||||
| Methods & users | Over 10000 possible | ||||
| Devices basic data | |||||
| Operation |
7.0“ capacitive touchscreen, 800 x 480 pixels Touchscreen, keyboard, mouse, barcode scanner |
||||
| Interfaces | 1x USB, 1x RS-232, 1x ethernet, LIMS | ||||
| Dimensions (W x H x D) | 200 mm x 150 mm x 350 mm | ||||
| Weight | 4.6 kg | ||||
| Additional features |
Input of product and batch designations, alarm limit management, user management, Measured value stabilization, air pressure display |
||||
| Temperature data | |||||
| Ambient temperature | 10-50° C | ||||
| Humididy measurement gas | <90% RH (non-condensing) | ||||
| Electrical data | |||||
| Operating voltage | 100-250 VAC | ||||
| Power consumption max. | 60 W | ||||
| Rated frequency | 50/60 Hz | ||||
| 1) after heating-up time, 2) after pre-rinse | |||||
| Analysis data oxygen (O2) | |||||
| Measurement range | 0-100 vol.-% | ||||
| Sensor accuracy / 1 | ±0.02 vol.-% abs. (< 1 vol.-%) | ||||
| Sensor accuracy / 2 | ±3 vol.-% rel. (> 1 vol.-%) | ||||
| Resolution | 0.001 Vol.-% | ||||
| O2 sensor data | |||||
| Type | Zirconium dioxide sensor (ZrO2) | ||||
| Drift | Drift-free | ||||
| Cross-sensitivity | Cross-sensitivity to flammable gases | ||||
Sensor
At the heart of the gas analysers is the sensor technology
Various models with different sensor technology are optionally available for optimum adaptation to the respective application. The respective proven sensor technology should be selected for each specific application and process. The range of sensors available allows optimum adaptation in terms of measurement range and accuracy:
- Electrochemical cell (EC) for O2 measurement
- Zirconium dioxide cell (ZrO2) for O2 measurement
- Non-dispersive infrared sensor (NDIR) for CO2 measurement
The following overview provides an initial overview. We will be happy to discuss which device models are suitable for your specific requirements in a personal consultation.
Please feel free to contact us
| gas analyser | MAT1100 model | MAT1200 model | MAT 1400 model | MAT1500 model |
|---|---|---|---|---|
| Application |
Sporadic O2-sample check |
Combined O2- and CO2-measurement |
High sample throughput High O2-concentration |
High sample throughput High O2-concentration + Combined O2- and CO2-measurement |
| Advantage model version | Cost-effective option, fast operational readiness, low drift | Cost-effective option, low drift, environmentally compensated CO2 measurement | Long lifespan, fast measurement, high precision measuring lowest O2-concentrations, wide measurement range, drift-free | Long lifespan, fast measurement, high precision measuring lowest O2-concentrations, wide measurement range, ZrO2: drift-free, NDIR: drift-free, environmentally compensated CO2 measurement |
| O2 sensor technology | Electrochemical oxygen cell (EC) | Electrochemical oxygen cell (EC) | Zirconium dioxide sensor (ZrO2) | Zirconium dioxide sensor (ZrO2) |
| CO2 sensor technology | Non-dispersive infrared sensor (NIR) | Non-dispersive infrared sensor (NIR) | Non-dispersive infrared sensor (NIR) | Non-dispersive infrared sensor (NIR) |
| N2 sensor technology | Arithmetic determination | Arithmetic determination | Arithmetic determination | Arithmetic determination |
