Microscope-monocular-bright-field-Abbe-condenser-Kruess_MML1200-SET

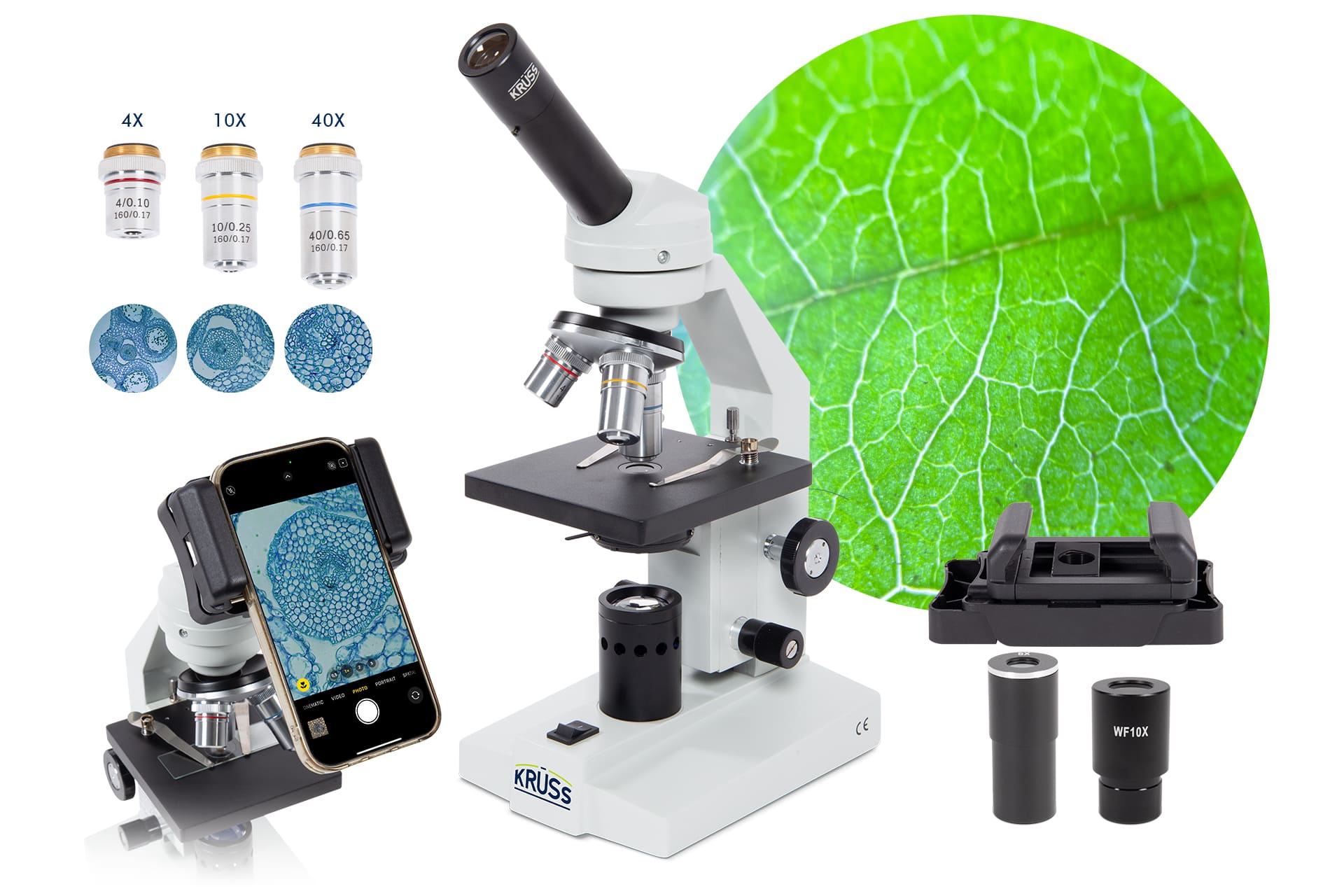

Monocular microscope MML1200

169,00 €

Microscope for beginners and children;
Objectives: 4X, 10X, 40X

Availability: 62 in stock

SKU: MML1200 Category: Tags: , , ,

excl. VAT zzgl. Versandkosten

Product description

This practical microscope is ideal for training or for newcomers. Commonly used for uncomplicated laboratory applications, excursions and the examination of low-light specimens. This microscope is very pleasant to use because it has a minimum of adjusting screws, so that little can go wrong during application. The single tube is ideal for beginners who often find it difficult to look into the microscope with two eyes. The monocular microscope is small, lightweight and can be flexibly placed anywhere. This makes it ideal for teaching and training in courses. They are also frequently used to make a preliminary selection of specimens that are later to be examined in more detail with high-quality laboratory microscopes.

Basic functions

  • 45° angled view for ergonomic working
  • 360° rotatable optical head
  • Sturdy metal stand with coarse drive for precise work
  • Integrated illumination
  • Operating voltage: 230 V, 50 Hz
  • Included in the scope of delivery: Smartphone adapter (MML2043) and 5X wide-field eyepiece (MML1105)

Technical data

TABLE

Monocular microscopes – A comparison of the MML models
Specification Model: MML1200 Model: MML1300 Model: MML1400
Microscope head 45° angled view, 360° rotatable
Eyepieces 10X widefield plano eyepieces
Revolving nosepiece 3-fold 3-fold 4-fold
Objectives Achromatic objectives:

  • 4X, NA 0.10
  • 10X, NA 0.25
  • 40X, NA 0.65
 Achromatic objectives:

  • 4X, NA 0.10
  • 10X, NA 0.25
  • 40X, NA 0.65
 Achromatic objectives:

  • 4X, NA 0.10
  • 10X, NA 0.25
  • 40X, NA 0.65
  • 100x/NA 1.25 Oil
Condenser Bright-field Abbe condenser (NA
1.25) with Iris diaphragm and
filter holder
Illumination Built-in illumination with reflector (12 V 10 W) Built-in adjustable illumination with reflector (12 V 10 W) Built-in adjustable illumination with reflector (12 V 10 W)
Stand Made of metal with coarse and fine drive
IP code IP20
Dimensions (W x H x D) Microscope: 135 mm x 360 mm x 220 mm
Weight 3.3 kg
Additional equipment (included in the scope of delivery) 5X wide-field eyepieces (MML1105);
Smartphone adaptor (MML2043)
Specification Temperature data
Ambient temperature 0-40° C
Ambient humidity 10-90% (non-condensing)
Specification Electrical data
Operating voltage External mains adaptor: 100-240 VAC, microscope: 12 VDC
Rated frequency 50/60 Hz

Documents

Title Download
Microscopes product catalogue DownloadPreview
Microscopes applications and models DownloadPreview
Microscopy basics-Kruess DownloadPreview
